Specification of Glass Loading Machine

2020年最新款 (獨家?guī)掀洃浌δ?/span>)多功能 一鍵式  全自動 玻璃上片機：是一款非常適用的玻璃取片、氣浮、掰片一體機。有一鍵自動尋找玻璃、360°旋轉等功能，完美的無線遙控控制系統可輕松實現取片、放片、掰片，且安全可靠。此設備也是一個可移動的氣浮臺，安裝一個大功率高壓風機，比普通的氣浮臺使用起來更加靈活方便，工人使使用推玻璃移動更加輕松，也保護玻璃不被劃傷。開片頂桿是一橫兩豎三個頂桿，掰片系統可以適應玻璃任意尺寸的切割掰片。

The latest model in 2020 (exclusively with the memory function of loading), a multi-function one-button automatic glass loading machine: it is a very suitable glass picking, air floating, and breaking all-in-one machine. It has functions such as one-key automatic search for glass, 360°rotation, etc. The perfect wireless remote control system can easily realize the fetching, placing and breaking of the film, and it is safe and reliable. This equipment is also a movable air-floating table, equipped with a high-power high-pressure fan, which is more flexible and convenient to use than ordinary air-floating tables. Workers make it easier to move the glass while protecting the glass from being scratched. The opening ejector rod is one horizontal, two vertical and three ejector rods. The breaking system can adapt to the cutting breaking of any size of glass.

全自動玻璃上片臺參數

Technical Information:

最大下片尺寸：3.66米2.80米

下片玻璃厚度：3-19mm

移動方向：前、后、左、右、360度全方位自由旋轉

下片速度：30秒左右

機器設備外形總尺寸：長3600米×寬2180米X高820米

重量：1.2噸

打包后尺寸：長度3650  寬度是2190高度900

功能：遙控操作：下片、上片、氣浮、掰片、自由移動。

Maximum download size: 3.66 meters 2.80 meters

Lower glass thickness: 3-19mm

Movement direction: front, back, left, right, 360 degree free rotation in all directions

Unloading speed: about 30 seconds

Overall dimensions of the machine and equipment: length 3600 meters × width 2180 meters × height 820 meters

Weight: 1.2 tons

Packed size: length 3650 width is 2190 height 900

Function: remote control operation: unload, load, float, break, move freely. ...

一鍵式操作設備起臂，行走，吸片，放片系列動作設備自動完成，無需工人操作，方便靈活，穩定性高，效率是傳統設備的兩倍。本設備可以輕松的抓取玻璃原片尺寸是3660×2800   3660×2440    3300×2440   2440×1830 玻璃厚度3--19毫米的大玻璃板！(也可以抓取4200×2800的厚度8--15毫米的玻璃)

The one-button operation equipment for raising arms, walking, sucking, and putting out the film series of action equipment automatically completes, without worker operation, convenient and flexible, high stability, and the efficiency is twice that of traditional equipment. This equipment can easily grab the original glass sheet with a size of 3660×2800 3660×2440 3300×2440 2440×1830 and a large glass plate with a thickness of 3-19 mm! (You can also grab 4200×2800 glass with a thickness of 8-15 mm)

臂和大架: 分體設計，行走輪和減速電機分體連接，解決了設備焊接變形，確保三臂在同一水平面，如果長期使用下輪子磨損需要更換，可以直接拆卸。

Arm and large frame: Split design, the walking wheel and the geared motor are connected separately, which solves the welding deformation of the equipment and ensures that the three arms are on the same level. If the wheels need to be replaced after long-term use, they can be disassembled directly.

變頻器: 3KW進口變頻器，可分階段自動調整起臂速度。更有利于設備的穩定性，在電流過大及其他異常時，變頻器會自動報警，使設備停止工作。安全更無損。

Inverter: 3KW imported inverter, which can automatically adjust the boom speed in stages. It is more conducive to the stability of the equipment. When the current is too large or other abnormalities, the inverter will automatically alarm to stop the equipment. The safety is more lossless.

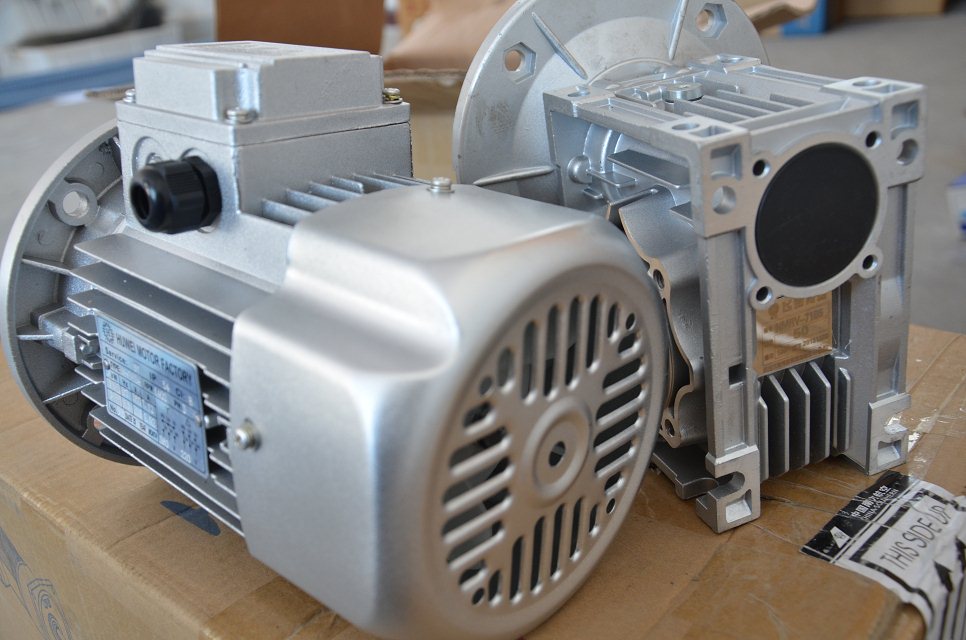

行走電機 : 前進減速機配純銅電機，大功率電機，承載力強，設備行走平穩，電機內部采用12-1錫青銅材質，傳動效率比傳統電機高15%左右,蝸輪材質更耐磨，壽命更久,油封全部采用瑞典SKF，,軸承臺灣UBC,內部油脂采用美孚牌全合成潤滑油，箱體采用德國最新型外觀。

Walking motor: The forward reducer is equipped with a pure copper motor, a high-power motor, strong carrying capacity, and the equipment runs smoothly. The interior of the motor is made of 12-1 tin bronze material. The transmission efficiency is about 15% higher than that of the traditional motor. The worm gear material is more wear-resistant and has a long life. For longer, all oil seals are made of Swedish SKF, bearing Taiwan UBC, internal grease uses Mobil brand fully synthetic lubricants, and the box body adopts the latest German appearance.

表面處理: 使用環氧底漆+固化劑     工業設備專用烤漆+固化劑，附著力好，光澤度高，硬度高，耐候性，耐酒精，耐酸，耐堿，耐鹽霧等性能。

Surface treatment: use epoxy primer + curing agent special baking paint + curing agent for industrial equipment, good adhesion, high gloss, high hardness, weather resistance, alcohol resistance, acid resistance, alkali resistance, salt spray resistance and other properties.

吸盤: 乳白色 純硅膠吸盤，高品質硅膠+吸盤總成，無毒，無味，防震，防霉，防曬，耐磨耐滑，防老化，耐腐蝕經久耐用。

Suction cup: Milky white pure silicone suction cup, high-quality silica gel + suction cup assembly, non-toxic, odorless, shockproof, mildewproof, sunscreen, wear-resistant, anti-slip, anti-aging, corrosion-resistant and durable.

氣管及接頭: 臺灣進口亞德客,密封性能好，質量穩定。

Air pipes and joints: Airtac imported from Taiwan, with good sealing performance and stable quality.

氣浮平臺風機: 國標3KW+12風葉，根據上片臺的特性定制，風機體積，風口形狀，風葉角度和數量都是特殊定制，小功率大風量。

Air-floating platform fan: National standard 3KW+12 fan blades, customized according to the characteristics of the loading table, fan volume, tuyere shape, blade angle and number are all customized, small power and large air volume.

空壓機(氣泵):設備本身配帶一個1100瓦的大功率靜音高壓氣泵，聲音小  功率大  打氣快，浙江名牌奧突斯牌，省去回家后再另外再接氣路管線的麻煩??！

Air compressor (air pump): The equipment itself is equipped with a high-power silent high-pressure air pump of 1100 watts, with low sound, high power and fast pumping. Zhejiang famous brand Otusi brand, saves the trouble of connecting the air pipeline after returning home! !

獨家?guī)РＡ∑洃浌δ?，也就是說只要用手動功能遙控把玻璃上片完成放到臺面上，轉換為自動模式后，一按遙控器，設備會根據記憶自動完成所有剩下的步驟，省事省力，工人輕松，老板放心！！無論男女工人，只要是會摁遙控器，就能獨立操作設備，不需要專門的師傅專業操作 ！

Exclusive with glass fetching memory function, which means that as long as you use the manual function to remotely place the glass on the table and switch to automatic mode, press the remote control, the device will automatically complete all the remaining steps according to the memory, saving trouble Save effort, ease workers, and rest assured boss! ! Both male and female workers, as long as they can press the remote control, they can operate the equipment independently, without the need for professional operation by a special master!

真正做到工人省心，老板放心！！

Really make workers worry-free, and bosses can rest assured! !
